Colorado Time Systems Touchpads have been used in competition in every continent on the globe.

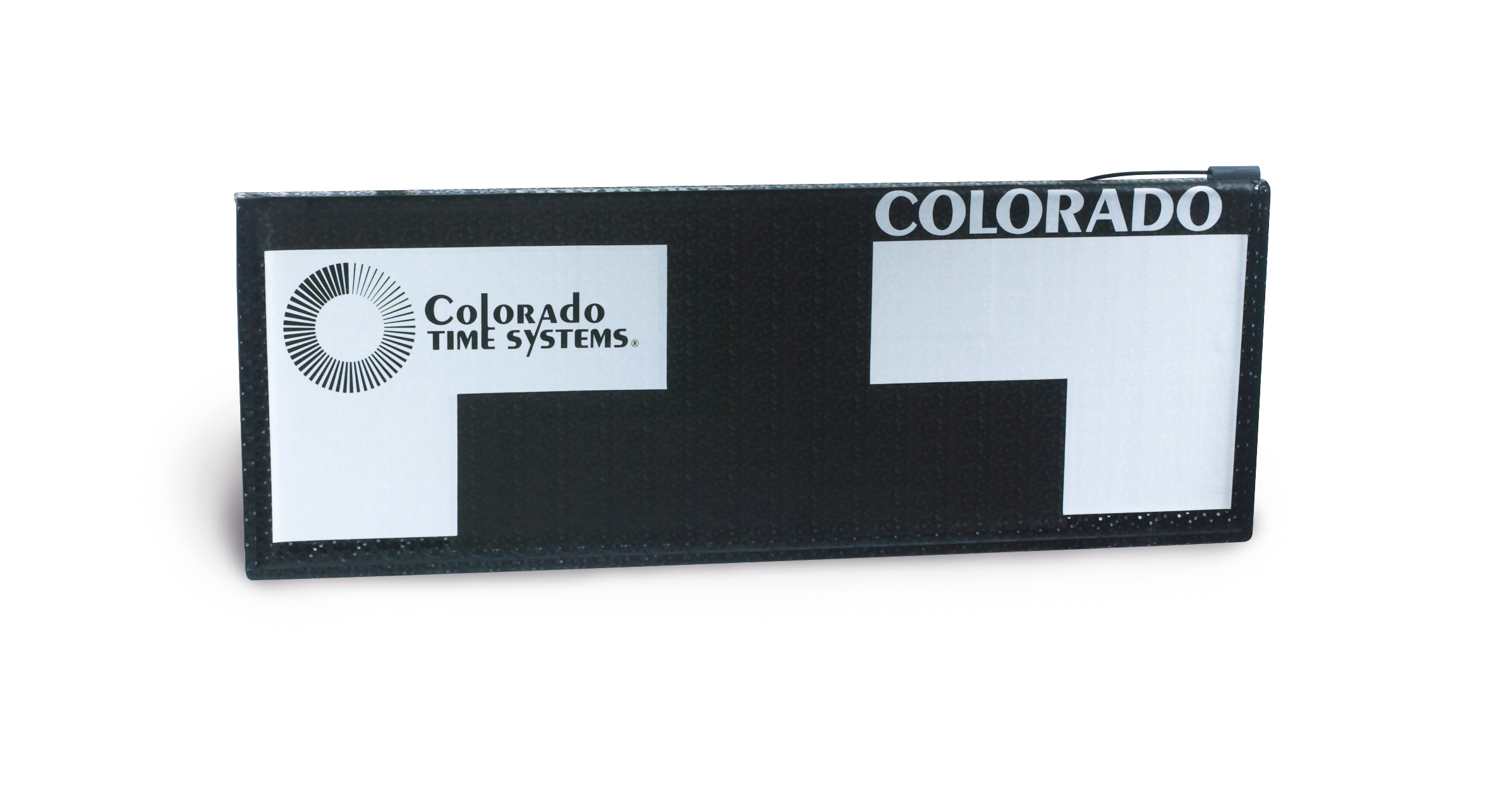

Standard touchpads combine a tried and true non-stick surface with the proven design that all Colorado Time Systems’ touchpads have used for forty years. They respond to a touch that’s remarkably light – but provide a push-off that’s thoroughly firm. CTS touchpads have all-plastic construction that is tough and durable, yet their textured, non-skid surface is gentle on swimmers’ hands and feet. The solid quarter inch plastic backbone, molded one-piece connectors and non-corrosive finish provide long-lasting reliability.
FEATURES
- Tough, Durable and Gentle
Why do our touchpads show up at more swim meets than any other in the world? Their all-plastic construction is tough and durable, yet their textured, non-skid surface is gentle on swimmers’ feet. The solid quarter inch plastic backbone, molded one-piece connectors and non-corrosive finish provide long-lasting reliability. Our touchpads can even be left in the water for the duration of an entire event. - Easy to Install, Stays in Place
Set-up is easy, thanks to our mounting system customized for your pool. They hold your pads in place without hardware or holes (in most pools) and prevent unwanted vertical and lateral movement. Best of all, you don’t need any tools. - Sensitive to the Lightest Touch
Dependable, internally sealed switches record even the lightest swimmers’ touch on the fully active face of all CTS pads, and also along the top edge of gutter-mounted pads. You get an accurate finish every time with no “dead spots.” - A Perfect Size for Every Lane
At Colorado Time Systems, we will help you select the perfect touchpad for your facility. Choose from standard sizes or custom widths, and flat wall or gutter mounts.
Specifications
DESCRIPTION | STANDARD GUTTERHUNG | WEIGHT | STANDARD FLATWALL* | WEIGHT |
---|---|---|---|---|
188.5cm x 90cm Touchpad | TP-188.5 | 47 lbs (21.3kg) | TP-188.5F | 47 lbs (21.3 kg) |
190cm x 90cm Touchpad | TP-190 | 49 lbs (22.2kg) | TP-190F | 49 lbs (22.2kg) |
195cm x 90cm Touchpad | TP-195 | 49 lbs (22.2 kg) | TP-195F | 49 lbs (22.2kg) |
240cm x 90cm Touchpad | TP-240 | 66 lbs (30kg) | TP-240F | 66 lbs (30kg) |
60in x 22in Touchpad (152.40cm x 55.88cm) Recommended for lanes 66 to 84 inches wide |
TP-60 | 28 lbs (12.7kg) | ||
60in x 24in Touchpad (152.40cm x 60.96cm) Recommended for lanes 66 to 84 inches wide |
TP-60F | 33 lbs (15kg) | ||
78in x 22in Touchpad (198.12cm x 55.88cm) Recommended for lanes 84 to 96 inches wide |
TP-78 | 35 lbs (15.9kg) | ||
78in x 24in Touchpad (198.12cm x 60.96cm) Recommended for lanes 84 to 96 inches wide |
TP-78F | 40 lbs (18.1 kg) | ||
96in x 22in Touchpad (243.84cm x 55.88cm) | TP-96 | 45 lbs (20.4kg) |
Support for Standard Touchpads
Manuals
Videos
Installation drawings
Repair and Service Forms
If you don’t find the support you’re looking for here, visit our support page or contact our support team for a specific request.
