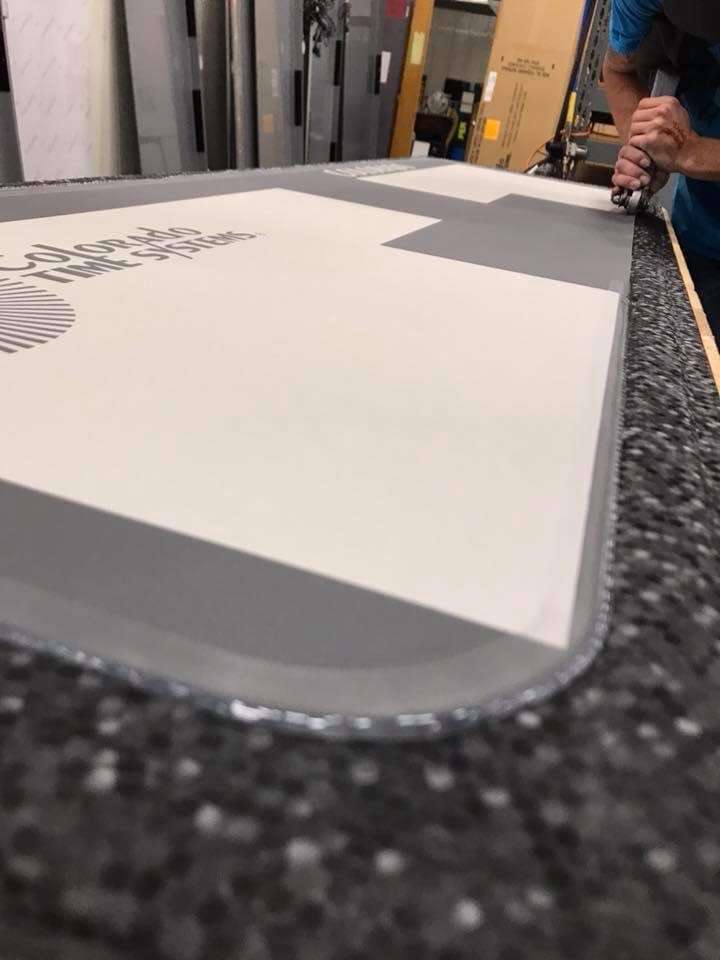

touchpad with Aquagrip
Athlete in front of AquaGrip Touchpad
Athletes in front of AquaGrip Touchpad
Athlete in front of AquaGrip Touchpad
USA Athlete with Colorado Time Systems Touchpad, competitive swimming
USA Athlete with Colorado Time Systems Touchpad, competitive swimming
USA Athlete with Colorado Time Systems Touchpad, competitive swimming
USA Athlete with Colorado Time Systems Touchpad, competitive swimming
USA Athlete with Colorado Time Systems Touchpad, competitive swimming
touchpad with Aquagrip
Athlete in front of AquaGrip Touchpad
Athletes in front of AquaGrip Touchpad
Athlete in front of AquaGrip Touchpad
USA Athlete with Colorado Time Systems Touchpad, competitive swimming
USA Athlete with Colorado Time Systems Touchpad, competitive swimming
USA Athlete with Colorado Time Systems Touchpad, competitive swimming
USA Athlete with Colorado Time Systems Touchpad, competitive swimming
USA Athlete with Colorado Time Systems Touchpad, competitive swimming

Get a grip on every start and turn! CTS AquaGrip® touchpads feature the patented AquaGrip® texture over the foundation of a tough plastic backbone.

The AquaGrip® touchpads combine the best starting and turning surface available with the proven design that all Colorado Time Systems’ touchpads have used for over forty years. They respond to a touch that’s remarkably light – but provide a push-off that’s thoroughly firm. AquaGrip® touchpads have all-plastic construction that is tough and durable, yet their textured, non-skid surface is gentle on swimmers’ hands and feet. The solid quarter inch plastic backbone, molded one-piece connectors and non-corrosive finish provide long-lasting reliability.

FEATURES

  • Easy to Install, Stays in Place
    Set-up is easy, thanks to our mounting system customized for your pool. They hold your AquaGrip® touchpads in place without hardware or holes (in most pools) and prevent unwanted vertical and lateral movement. Best of all, you don’t need any tools. Our AquaGrip® touchpads can even be left in the water for the duration of a meet.
  • Sensitive to the Lightest Touch
    Dependable, internally sealed switches record even the lightest swimmers’ touch on the fully active face of all CTS AquaGrip® touchpads, and also along the top edge of gutter-mounted pads. You get an accurate finish every time with no “dead spots.”
  • A Perfect Size for Every Lane
    At Colorado Time Systems, we will help you select the perfect AquaGrip® touchpad for your facility. Choose from standard-sized flat wall or gutter mounts. Custom widths are available.

Specifications

  • All of our AquaGrip® touchpads have an internal full face switch.

  • Top edge switch on gutter mount touchpads.

  • Most of our touchpads are available with either our standard non-skid surface, or our patented AquaGrip® surface.

  • AquaGrip® touchpads are an all-plastic construction, and include a 10-foot cable with molded connector.

  • Less than 5vDC on deck power required (electronically isolated at the timer).

  • Custom size AquaGrip® touchpads are also available.





DESCRIPTION AQUAGRIP GUTTERHUNG WEIGHT AQUAGRIP FLATWALL* WEIGHT
188.5cm x 90cm Touchpad TP-188.5G 47 lbs (21.3kg) TP-188.5GF 47 lbs (21.3kg)
195cm x 90cm Touchpad TP-195G 49 lbs (22.2kg) TP-195GF 49 lbs (22.2kg)
240cm x 90cm Touchpad TP-240G 66 lbs (30 kg) TP-240GF 66 lbs (30 kg)
60in x 22in Touchpad (152.40cm x 55.88cm)
Recommended for lanes 66 to 84 inches wide
TP-60G 28 lbs (12.7kg)
60in x 24in Touchpad (152.40cm x 60.96cm)
Recommended for lanes 66 to 84 inches wide
    TP-60GF 33 lbs (15kg)
78in x 22in Touchpad (198.12cm x 55.88cm)
Recommended for lanes 84 to 96 inches wide
TP-78G 35 lbs (15.9kg)
78in x 24in Touchpad (198.12cm x 60.96cm)
Recommended for lanes 84 to 96 inches wide
    TP-78GF 40 lbs (18.1kg)
96in x 22in Touchpad (243.84cm x 55.88cm) TP-96G 45 lbs (20.4kg)



Specifications are subject to change without notice.

Patents

US Patent no. 5,702,799
Support for AquaGrip® Touchpads
Manuals
Name Download
Test Meter Instructions F696 Download
Touchpad User Guide F147 Download
Vacuum Pump (VP-1) User Instructions F207 Download
Vacuum Pump (VP-2) User Instructions F908 Download
Gutter Diagram Download
Videos
Installing Touchpad Brackets - Paddock
Testing a Touchpad
Placing Touchpad Brackets and Touchpads
Gen7 Serial Deckplate Overview
Touchpad Overview
Replacing a Dual Banana Plug
Installation drawings
Name Download
Flat Brackets for Gutter Hung Touchpads Installation Instructions F965 Download
Brackets for Stark Bulkheads for Touchpads with Mounting Holes F973 Download
Brackets for Stark Bulkheads for Touchpads without Mounting Holes F960 Download
Repair and Service Forms

If you don’t find the support you’re looking for here, visit our support page or contact our support team for a specific request.
