Soccer Scoreboard (SC-1901)

The Colorado Soccer Electronic Scoreboard is an ideal solution for your recreational soccer fields.  With no hidden fees, each scoreboard INCLUDES:  built-in wireless capabilities, wireless scoreboard controller, built-in horn, and free customization options.

• High visibility LED digits
• Enclosures can be customized to match your team colors
• Rugged powder-coated aluminum enclosures
• 2.4GHz integrated wireless
• Flexibility to select captions based on your application
• Removable lexan panels for easy cleaning
• Conformal coated to protect against corrosion
• 5-year limited warranty

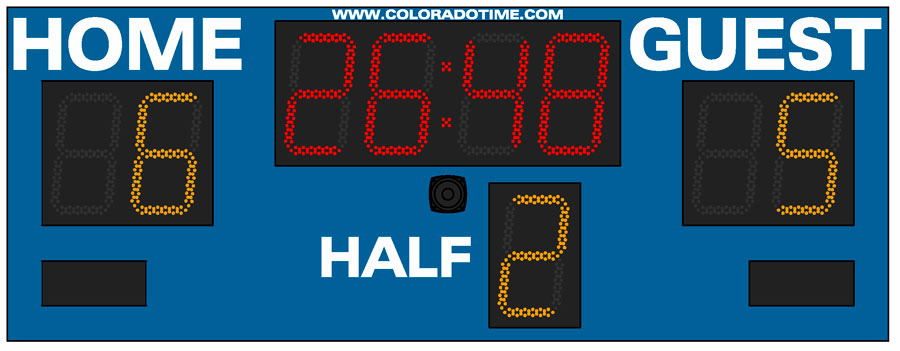

This outdoor LED soccer electronic scoreboard provides wireless scoring capabilities, and includes HOME, GUEST, TIME, and HALF displays.  An adjustable 8-tone 125dB horn provides clear, audible end-of-period and other notifications.   Integrated time-of-day functionality allows the scoreboard to act as a clock when control console is off.  Weather-proof digits and electronics are housed in a powder-coated aluminum chassis, which provides excellent corrosion resistance.  Scoreboard is shipped as one piece for ease of handling and installation.

DIGITS

• High-visibility LED digits with adjustable brightness
• HOME, TIME, GUEST, HALF:  18” (45.7 cm) digit height
• Select either all red,  all amber, or mixed digit color
• High-strength polycarbonate digit covers protect digits and antenna from weather and impacts

CONTROL CONSOLE

• Wireless Handheld Controller provides integrated 2.4 GHz wireless scoring technology, and features an operating distance of up to 1,000 feet.  The unit has 12 independent channels and 16 independent networks per channel that provide reliable communication for up to 192 separate games at a facility.
• Wireless Tabletop Controller can be added for additional flexibility
• Wired control options are available

CAPTIONS

• Vinyl artwork captions are applied directly to display face
• HOME, GUEST:  8” (20.3 cm) caption height
• HALF:  6” (15.2 cm) caption height
• Team name caption can be shown in place of HOME

SCOREBOARD COLOR

• Choose from the following powder-coat color options at no additional cost:

• Custom color matching is available

CONSTRUCTION

• Scoreboard constructed of lightweight, durable, powder-coated 5052 aluminum
• Scoreboard is shipped as one piece for ease of handling and installation

MOUNTING

For convenient installation, the scoreboard is equipped with four mounting tabs – two on the top and two on the bottom of the scoreboard.  Integrated lifting rings are used to hoist the display into place, where it is then secured via bolting or welding.  Various mounting options are available to ensure an efficient installation for different applications.  Refer to Installation Guide for more information regarding mounting procedure and details.

SERVICE ACCESS

• All digits and electronic components are accessed through the front face of the scoreboard
• Digit covers are secured by quarter-turn slotted studs, which provide quick and convenient access to the electronic components behind them

SIGN PANELS

Various sign panel options are available.  Contact CTS for more information regarding advertising and identification sign panels.

OPERATING TEMPERATURES

-41 to 131° Fahrenheit (-5 to 55° Celsius)
