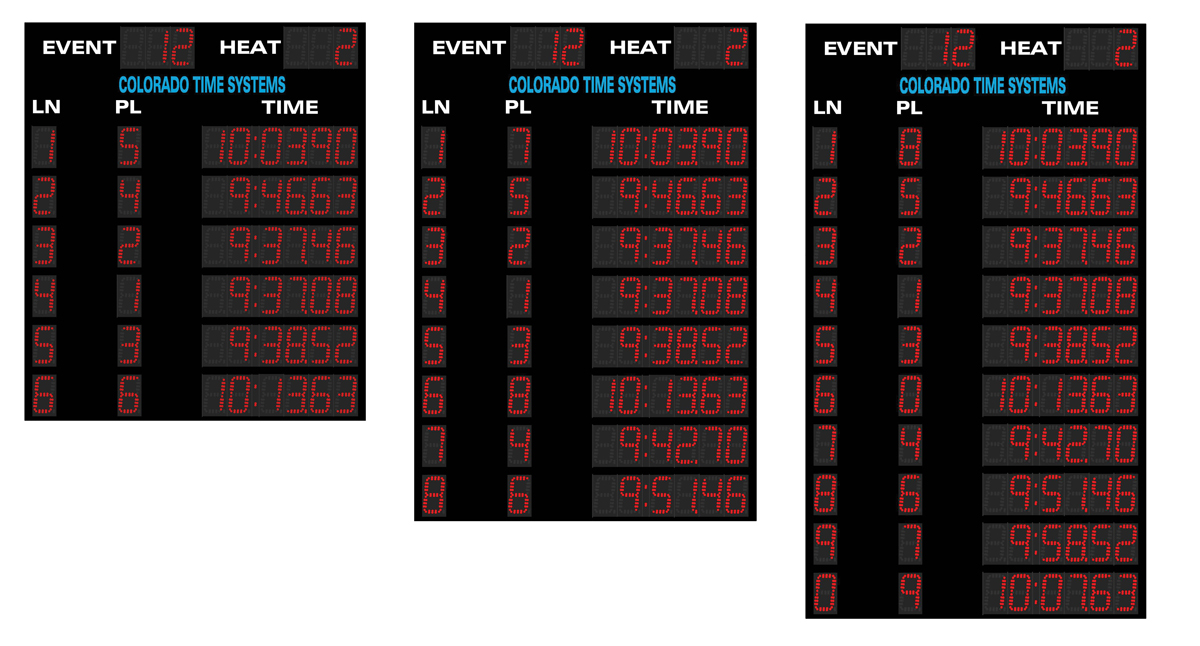

Otter 5-, 6-, 8-, and 10-lane Scoreboards for Track
Product Details
OTTER electronic scoreboards for track and swimming feature integrated 2.4GHz wireless technology and are about half the width of standard LED-R electronic scoreboards, making them an ideal solution for tight spaces or as an auxiliary electronic scoreboard within your facility.
This sleek design offers wired or wireless communication with your CTS timing console, and wireless communication with your Dolphin and RoadRunner Track Wireless Timing Systems. Otter electronic scoreboards can be used as a permanent or portable solution depending on your needs. Weather-proof digits and electronics are housed in a powder-coated aluminum chassis, which provides excellent corrosion resistance. Each scoreboard is shipped as one piece for ease of handling and installation.
Specifications
OTTER 5-lane electronic scoreboard (MS-0188)
- Overall dimensions (H x W x D): 4′-8″ x 4′-0″ x 4-1/4″ (1.42m x 1.22m x 0.11m)
- Weight: 60 lbs (27.22kg)
- Power: 115VAC~230VAC, 50/60Hz, 200W, 14’ power cord with NEMA 5-15R plug; available with international plug (type F, G, or I) upon request

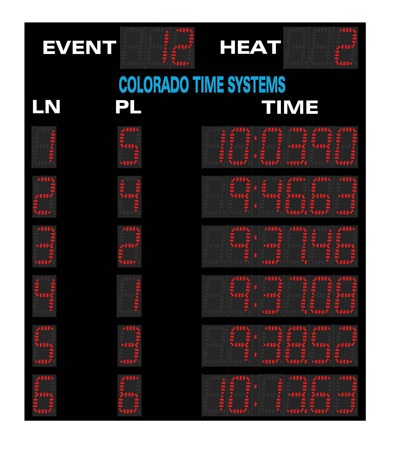

OTTER 6-lane electronic scoreboard (MS-0149)
- Overall dimensions (H x W x D): 4′-8″ x 4′-0″ x 4-1/4″ (1.42m x 1.22m x 0.11m)
- Weight: 60 lbs (27.22kg)
- Power: 115VAC – 230VAC, 50/60Hz, 200W, 14′ power cord with NEMA 5-15R plug

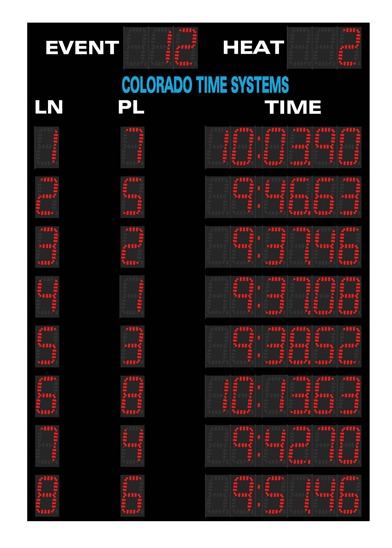

OTTER 8-lane electronic scoreboard (MS-0150)
- Overall dimensions (H x W x D): 5′-10″ x 4′-0″ x 4-1/4″ (1.78m x 1.22m x 0.11m)
- Weight: 70 lbs (31.75kg)
- Power: 115VAC – 230VAC, 50/60Hz, 240W, 14′ power cord with NEMA 5-15R plug

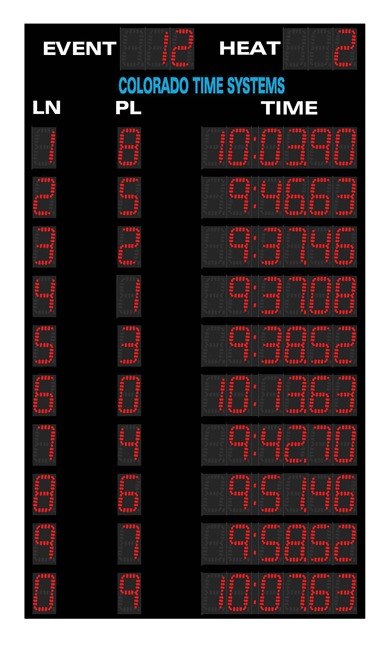

OTTER 10-lane electronic scoreboard (MS-0151)
- Overall dimensions (H x W x D): 7′-0″ x 4′-0″ x 4-1/4″ (2.13m x 1.22m x 0.11m)
- Weight: 80 lbs (36.29kg)
- Power: 115VAC – 230VAC, 50/60Hz, 280W, 14′ power cord with NEMA 5-15R plug
CONTROL CONSOLE
- Integrated internal antenna allows for reliable wireless communication to any WA-2 or WA-3 connected System 6 timing console
- RS-232 data jacks are located on the bottom or rear of the scoreboard for wired RS-232 communication with the System 6 timing console
- Integrated internal antenna provides reliable communication from Dolphin and RoadRunner timing systems
DIGITS
- High visibility red LED digits automatically adjust to ambient light to provide optimal viewing
- 5″ (12.7cm) digit height
- High-strength polycarbonate digit covers protect digits and antenna from weather and impact
SCOREBOARD COLOR
- Choose from the following powder-coat color options at no additional cost:
CONSTRUCTION
- Scoreboard assembly consists of a single 5052-alloy aluminum display chassis with internal digit brackets
- Scoreboard is shipped as one piece for ease of handling and installation
MOUNTING
A variety of mounting options allow for the scoreboard to be mounted directly to a flat wall, corner wall, vertical beam, or portable caddy. Mounting tabs are attached to the board in one of three locations. Simply lift the display into place, where it is then easily bolted to the wall or other support structure. Refer to the Installation Guide for more information regarding mounting procedure and details.
Certifications
- cETLus, FCC, and RoHS compliant
Manuals
Installation drawings
| Name | Download |
|---|---|
| Otter Scoreboard Caddy Assembly Instructions F1002 | Download |
| MS-0149 Otter Scoreboard Pole Mount Instructions (S2015-002-004-A) (.dwg) | Download |
| MS-0149 Otter Scoreboard Wallmount Instructions (S2015-002-006-A1) (.dwg) | Download |
| MS-0149 Otter Scoreboard Corner Mount Instructions (S2015-002-011-A) (.pdf) | Download |
| MS-0150 Otter Scoreboard Pole Mount Instructions (S2020-002-007-A) (.pdf) | Download |
| MS-0150 Otter Scoreboard Pole Mount Instructions (S2020-002-007-A) (.dwg) | Download |
| MS-0150 Otter Scoreboard Corner Mount Instructions (S2015-002-010-A) (.dwg) | Download |
| MS-0150 Otter Scoreboard Corner Mount Instructions (S2015-002-010-A) (.pdf) | Download |
| MS-0151 Otter Scoreboard Wallmount Instructions (S2015-002-005-A) (.dwg) | Download |
| MS-0149 Otter Scoreboard Pole Mount Instructions (S2015-002-004-A) (.pdf) | Download |
| MS-0149 Otter Scoreboard Wallmount Instructions (S2015-002-006-A1) (.pdf) | Download |
| MS-0149 Otter Scoreboard Corner Mount Instructions (S2015-002-011-A) (.dwg) | Download |
| MS-0150 Otter Scoreboard Wallmount Instructions (S2015-002-007-B) (.pdf) | Download |
| MS-0151 Otter Scoreboard Wallmount Instructions (S2015-002-005-A) (.pdf) | Download |
| CAD-MINI-4 Otter Scoreboard Caddy Mounting Instructions (S2019-001-001) (.pdf) | Download |
| CAD-MINI-5 Otter Scoreboard Caddy Mounting Instructions (S2014-001-001) (.pdf) | Download |
